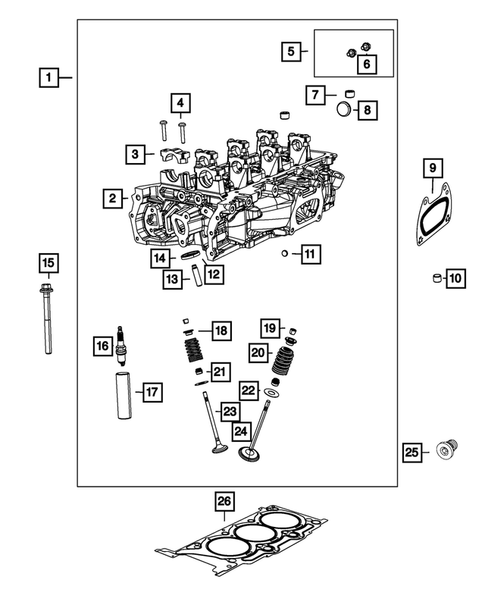

Cylinder Head for 2025 Chrysler Pacifica
No.
Part # / Description / Price
4
Pan Head Screw, Mounting Right Side
Mopar
MSRP $3.95 CAD
Mopar Pan Head Screw
M6X1.00X43.00. Camshaft Cap To Cylinder Head
5
Cylinder Head Bolt Kit Mopar
MSRP $30.15 CAD
Mopar Cylinder Head Oil Gallery Bolt Kit
WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
6
Hex Flange Head Bolt, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar Hex Flange Head Bolt
M8X1.25X12.00. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly
7
Pipe Plug, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar Pipe Plug
.375-18X.475. Oil Gallery In In Cylinder Head Valley
8
Core Plug, Left, Cylinder Head Mopar
MSRP $9.25 CAD
Mopar Core Plug, Left Cylinder Head
1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
9
Exhaust Flange To Cylinder Head Gasket Mopar
MSRP $32.30 CAD
Mopar To Cylinder Head. Exhaust Flange to Manifold.
10
Dowel Pin, Mounting Mopar
MSRP $15.15 CAD
Mopar Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
15
Hex Washer Head Bolt, Mounting Mopar
MSRP $6.90 CAD
Mopar M12X1.50X130.00. Cylinder Head To Cylinder Block
21
Valve Guide Seal Mopar
MSRP $6.65 CAD
Mopar Black And Brown Are Interchangable. But All One Color Must Be Used On The Cylinder Head At The Same Time.. Black
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

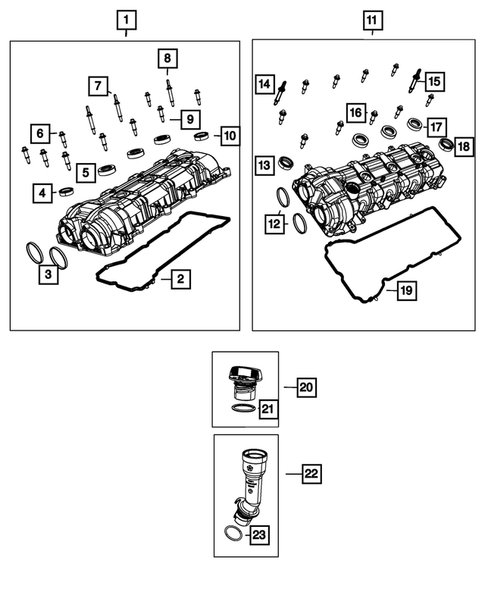

No.
Part # / Description / Price
2
5
Spark Plug Well Gasket, Left Side Mopar
MSRP $33.55 CAD
Mopar Spark Plug Well Gasket, Right Side
Right Side. Left Side. Cylinder Head Cover.
6
Hex Flange Head Bolt, Mounting Left Side Mopar
MSRP $4.85 CAD
Mopar Hex Flange Head Bolt, Mounting Right Side
M6X1.00X34.50. Cylinder Head Cover To Cylinder Head
7
Double Ended Stud And Washer, Mounting Right Side Mopar
MSRP $8.25 CAD
Mopar M6X1.00X18.54XM6X1.00X55.50. Cylinder Head Cover To Cylinder Head
8
Double Ended Stud, Mounting Right Side Mopar
MSRP $6.45 CAD
Mopar M6X1.00X18.50XM6X1.00X34.50. Cylinder Head Cover To Cylinder Head
9
Hex Flange Head Bolt, Mounting Left Side Mopar
MSRP $6.90 CAD
Mopar Hex Flange Head Bolt, Mounting Right Side
M6X1.00X55.50. Cylinder Head Cover To Cylinder Head
10
Camshaft Sensor Seal Mopar
MSRP $39.50 CAD
Mopar Camshaft Sensor Seal, Right
Right Side. Left Side. Camshaft Phaser.
19
No.
Part # / Description / Price
5
Cylinder Head Bolt Kit Mopar
MSRP $30.15 CAD
Mopar Cylinder Head Oil Gallery Bolt Kit
WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
9
Exhaust Flange To Cylinder Head Gasket Mopar
MSRP $32.30 CAD
Mopar To Cylinder Head. Exhaust Flange to Manifold.
