Home 2025 Chrysler Pacifica Hybrid Pinnacle 3.6L V6 - Electric/Gas Case and Related Parts

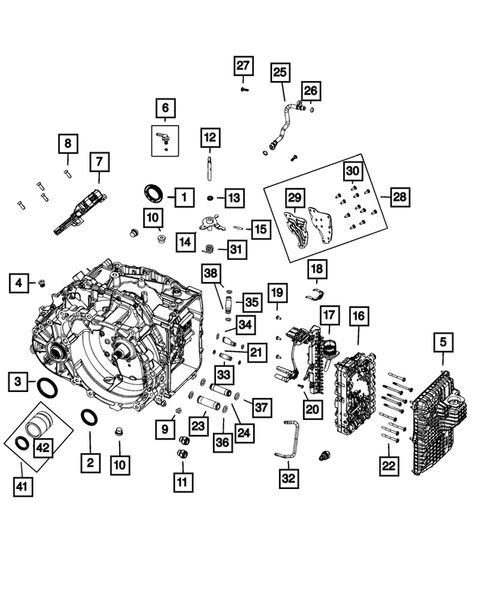

Case and Related Parts for 2025 Chrysler Pacifica

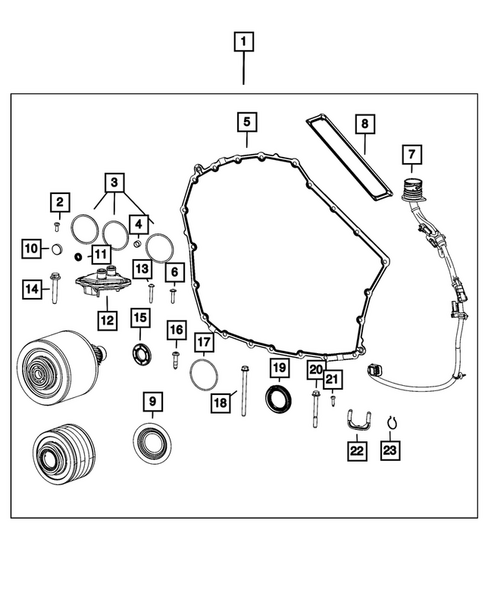

Case and Related Parts for 2025 Chrysler Pacifica #2

Case and Related Parts for 2025 Chrysler Pacifica #3

Case and Related Parts for 2025 Chrysler Pacifica #4

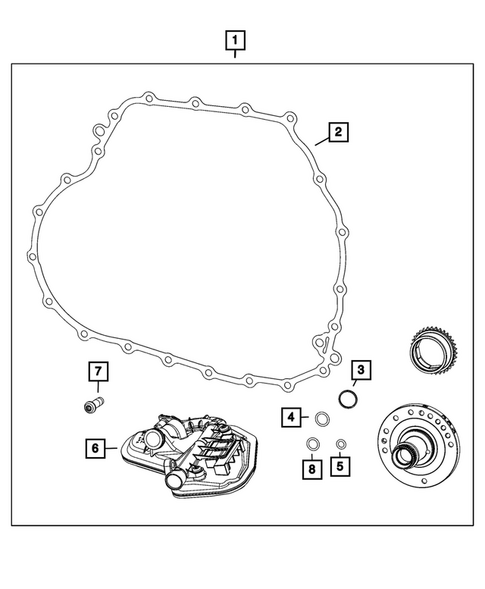

Case and Related Parts for 2025 Chrysler Pacifica #5

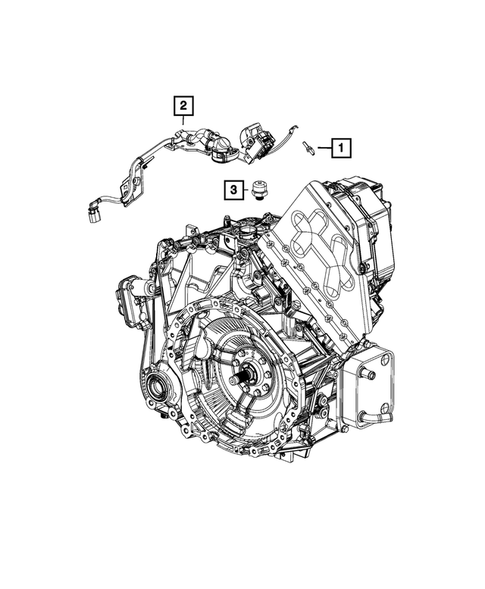

Case and Related Parts for 2025 Chrysler Pacifica #6

No.

Part # / Description / Price

N/A

Transmission Case Gasket

MSRP $92.95 CAD

04752955AA

Mopar

Bell Housing

View Details

Axle Drive Shaft Seal

MSRP $53.35 CAD

04736843AA

Mopar

View Details

Impeller Seal

MSRP $3.50 CAD

04752960AA

Mopar

View Details

Transmission Case Plug

MSRP $18.45 CAD

06510708AA

Mopar

M14X1.50X12.00

View Details

Transmission Oil Pan

04752951AA

Mopar

Includes Gasket

View Details

Transmission Vent

04800976AA

Mopar

View Details

Transmission Control Module

68592351AA

Mopar

View Details

Round Head Screw

MSRP $12.95 CAD

06104129AA

Mopar

M8X1.25X20.00

View Details

Hex Bolt

MSRP $10.25 CAD

06510051AA

Mopar

[M10X1.00X8.00]

View Details

Transmission Case Plug

MSRP $21.05 CAD

06513212AA

Mopar

[M18 x 1.5]. [m18x1.50x12.0].

View Details

Quick Connect Fitting

MSRP $43.10 CAD

52108844AA

Mopar

1/2"

View Details

Manual Lever Shaft Assy

MSRP $63.60 CAD

04752936AB

Mopar

View Details

Manual Valve Lever Seal

MSRP $9.80 CAD

52854578AA

Mopar

View Details

Gearshift Detent

68249082AA

Mopar

Includes Pin Item #16

View Details

Roll Pin

06510079AA

Mopar

Included With Item 14.

View Details

Complete Valve Body ¹

68318222AA

Mopar

After 6/11/2016

View Details

Complete Valve Body, Remanufactured ¹

R8318222AA

Mopar

After 6/11/2016

View Details

Transmission Range Sensor

68425023AA

Mopar

View Details

Wiring Harness Retainer

04752926AA

Mopar

View Details

Bolt

06512096AA

Mopar

M5x0.8x12.50

View Details

Screw

06510696AA

Mopar

M5x0.80x14.00

View Details

O-ring

MSRP $5.20 CAD

04753042AA

Mopar

View Details

6 Lobe Screw

MSRP $4.85 CAD

06510065AA

Mopar

M6X1.00X59.00. Valve Body to Transmssion

View Details

Oil Feed Tube

MSRP $28.80 CAD

04752918AA

Mopar

76.00MM, Includes O-rings

View Details

Tube

MSRP $27.00 CAD

04752913AA

Mopar

72.00MM, Includes O-Rings

View Details

Oil Feed Tube

MSRP $65.60 CAD

68297327AB

Mopar

Includes O-Rings

View Details

6510697AA - Transmission: 6 Lobe Recessed Head Bolt for Mopar Image image

6 Lobe Recessed Head Bolt, Mounting, Upper

MSRP $2.70 CAD

06510697AA

Mopar

6 Lobe Recessed Head Bolt

M6X1.00X22.00. Oil Pan To Rear Crankshaft Oil Seal Retainer

View Details

Cover Kit

MSRP $16.80 CAD

68249855AB

Mopar

View Details

Transmission Case Gasket

MSRP $40.20 CAD

04753095AB

Mopar

View Details

6 Lobe Screw

MSRP $4.65 CAD

06510810AA

Mopar

M6X1.00X15.20

View Details

Parking Sprag Return Spring

Mopar

Oil Feed Tube

Mopar

Oil Feed Tube

MSRP $15.10 CAD

04753149AA

Mopar

51.60MM, Includes O-Rings

View Details

Oil Feed Tube

04736863AA

Mopar

41.40MM, Includes O-Rings

View Details

O Ring

MSRP $5.65 CAD

04752920AA

Mopar

Pump Pressure Tube.

View Details

O Ring

MSRP $5.65 CAD

04752915AA

Mopar

View Details

Pressure Sensor

MSRP $138.00 CAD

04752889AB

Mopar

Crankcase Pressure Sensor Only.

View Details

¹ This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

No.

Part # / Description / Price

Auto Transmission Rebuild Kit

68729719AB

Mopar

View Details

Pan Head Screw, Mounting, Secondary

MSRP $16.55 CAD

06104142AA

Mopar

Pan Head Screw

M6x1.00x16.00. Timing Chain Guide To Cylinder Block

View Details

Transmission Case Gasket

05062425AB

Mopar

View Details

Hex Flange Head Bolt

MSRP $8.25 CAD

06104124AA

Mopar

M6X1.0X30.00. MECHANICAL PUMP TO CASE

View Details

Inverter Module Gasket

MSRP $17.45 CAD

68272788AA

Mopar

View Details

Lube Control Plate Kit

05062185AA

Mopar

View Details

Valve Body Gasket And Seal Package

MSRP $11.40 CAD

68207789AA

Mopar

Magnet

Can be used with Oil Pans 52852912AA and 52852912AB

View Details

Manual Valve Lever Seal

MSRP $9.80 CAD

52854578AA

Mopar

View Details

Torx Screw

06512299AA

Mopar

M6X1.00X40.00

View Details

6104428AA - Transmission: Hex Head Bolt And Coned Washer for Mopar Image image

Hex Head Bolt And Coned Washer, Mounting

MSRP $9.80 CAD

06104428AA

Mopar

Hex Head Bolt And Coned Washer

M10X1.5X65.00. Front Engine Support To Cradle Middle Location [M10x1.5x65.0]

View Details

Input Shaft Seal

MSRP $40.95 CAD

05062420AA

Mopar

View Details

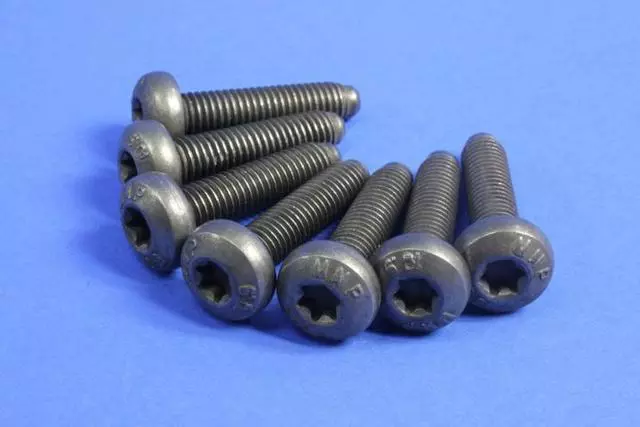

Pan Head Screw

06510698AA

Mopar

View Details

O Ring

MSRP $2.60 CAD

05062405AB

Mopar

View Details

Axle Drive Shaft Seal

MSRP $53.35 CAD

04736843AA

Mopar

View Details

Hex Flange Head Bolt

06510191AA

Mopar

M8X1.25X80.00. STATOR A TO CASE

View Details

Pan Head Screw

06509169AA

Mopar

M5X80X20.42

View Details

Wiring Harness Retainer

04752926AA

Mopar

View Details

No.

Part # / Description / Price

5190158AB - Transmission: Cover Plug for Mopar Image image

Connector Cover

MSRP $61.00 CAD

05190158AB

Mopar

Cover Plug

View Details

Connector Cover

MSRP $62.45 CAD

05190156AA

Mopar

View Details

Inverter Module

MSRP $4,500.00 CAD

68381781AD

Mopar

INVERTER

View Details

Connector Cover

MSRP $48.15 CAD

05190155AB

Mopar

View Details

Cover Plug

MSRP $40.50 CAD

05190157AB

Mopar

View Details

Hex Head Bolt And Coned Washer, Mounting

MSRP $9.80 CAD

06104428AA

Mopar

Hex Head Bolt And Coned Washer

M10X1.5X65.00. Front Engine Support To Cradle Middle Location [M10x1.5x65.0]

View Details

Inverter Module Gasket

MSRP $17.45 CAD

68272788AA

Mopar

View Details

Dowel, Mounting

MSRP $4.05 CAD

06102439AA

Mopar

Dowel

Transmission To Cylinder Block

View Details

Heat Shield

68282431AD

Mopar

See Transfer Case Group. Primary Heat Shield. Primary Shield, See Transaxle Group.

View Details

Pan Head Screw, Mounting, Secondary

MSRP $16.55 CAD

06104142AA

Mopar

Pan Head Screw

M6x1.00x16.00. Timing Chain Guide To Cylinder Block

View Details

Power Inverter Module Fuse

MSRP $185.00 CAD

68373864AA

Mopar

View Details

No.

Part # / Description / Price

Pan Head Screw

06510698AA

Mopar

View Details

O Ring

MSRP $2.60 CAD

05062405AB

Mopar

View Details

Input Shaft Seal

MSRP $40.95 CAD

05062420AA

Mopar

View Details

Transmission Case Plug

06511033AA

Mopar

View Details

Transmission Case Plug

MSRP $18.45 CAD

06510708AA

Mopar

M14X1.50X12.00

View Details

Transmission Case Plug

MSRP $21.05 CAD

06513212AA

Mopar

[M18 x 1.5]. [m18x1.50x12.0].

View Details

Hex Bolt

MSRP $10.25 CAD

06510051AA

Mopar

[M10X1.00X8.00]

View Details

Axle Drive Shaft Seal

MSRP $53.35 CAD

04736843AA

Mopar

View Details

Transmission Oil Cooler

MSRP $367.00 CAD

05192374AD

Mopar

Chiller Heat Exchanger

View Details

No.

Part # / Description / Price

Reaction Shaft Shaft Kit

68732959AC

Mopar

View Details

Transmission Case Gasket

MSRP $92.95 CAD

04752955AA

Mopar

Bell Housing

View Details

Seal Ring

04736946AA

Mopar

View Details

O Ring

MSRP $5.65 CAD

04752915AA

Mopar

View Details

O-ring

MSRP $5.20 CAD

04753042AA

Mopar

View Details

Transmission Oil Filter

MSRP $123.00 CAD

04752814AA

Mopar

View Details

No.

Part # / Description / Price

6509255AA - Transmission: Double Ended Stud for Mopar Image image

Double Ended Stud, Mounting, Lower

MSRP $11.25 CAD

06509255AA

Mopar

Double Ended Stud

View Details

Transmission Wiring

MSRP $264.00 CAD

68526122AB

Mopar

View Details

Transmission Air Vent Assy

52109020AA

Mopar

View Details

No.

Part # / Description / Price

Vent Tube

MSRP $17.35 CAD

04627441AA

Mopar

View Details

Cap Vent

04627968AA

Mopar

Headlamp.

View Details
