    Home 2022 Chrysler Pacifica Pinnacle 3.6L V6 - Gas Timing Belt/Chain and Cover and Balance Shaft

    My Garage

    2022 Chrysler Pacifica

    Pinnacle 3.6L V6 - Gas

    Change Vehicle

    Categories

    Engine
    Engine
    Browse Categories

    Timing Belt/Chain and Cover and Balance Shaft for 2022 Chrysler Pacifica

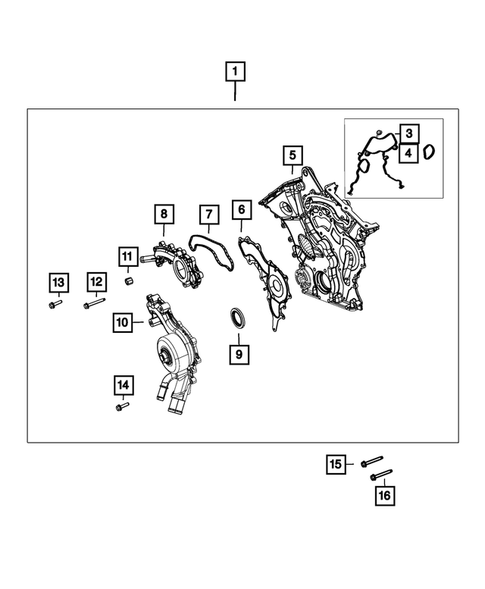

    Diagram 1 1. Camshaft Phaser Diagram 2 2. Chain Case Cover

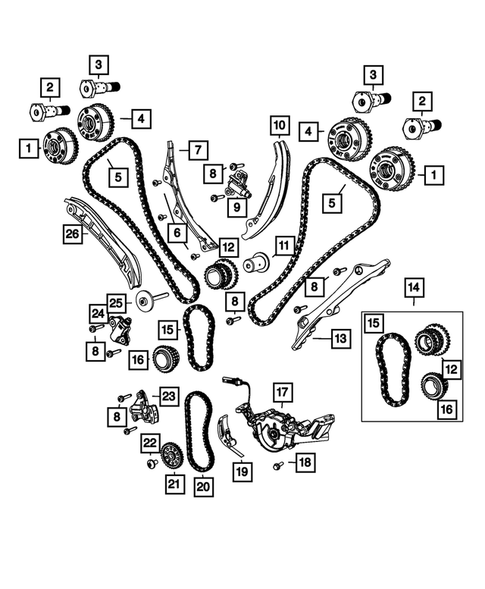

    Timing Belt/Chain and Cover and Balance Shaft for 2022 Chrysler Pacifica #0
    1
    1
    10
    11
    12
    12
    13
    15
    15
    16
    16
    18
    19
    2
    2
    20
    21
    22
    23
    24
    25
    26
    3
    3
    4
    4
    5
    5
    6
    7
    8
    8
    8
    8
    8
    9
    No.
    Part # / Description / Price
    1
    5048043AD - Engine: Camshaft Phaser for Mopar Image image
    Camshaft Phaser
    05048043AD
    Mopar Mopar

    Exhaust.

    View Details
    2
    5048044AC - Engine: Oil Control Valve for Mopar Image image
    Oil Control Valve
    MSRP $115.00 CAD
    05048044AC
    Mopar Mopar

    Exhaust.

    View Details
    3
    5047787AC - Engine: Oil Control Valve for Mopar Image image
    Oil Control Valve
    05047787AC
    Mopar Mopar

    Intake.

    View Details
    4
    5047785AF - Engine: Camshaft Phaser for Mopar Image image
    Camshaft Phaser
    MSRP $270.00 CAD
    05047785AF
    Mopar Mopar

    Intake.

    View Details
    5
    5047963AB - Engine: Timing Secondary Chain for Mopar Image image
    Timing Secondary Chain
    MSRP $144.00 CAD
    05047963AB
    Mopar Mopar

    View Details
    6
    6509353AA - Engine: Torx Head Bolt, Mounting, Secondary for Mopar Image image
    Torx Head Bolt, Mounting Right Side, Secondary
    MSRP $3.85 CAD
    06509353AA
    Mopar Mopar

    Torx Head Bolt, Mounting, Secondary, Right

    M6x1.00x15.00. Secondary Chain Guide To Right Cylinder Block/Head. Secondary Right Side Timing Chain Guide.

    View Details
    7
    5047791AB - Engine: Timing Chain Guide for Mopar Image image
    Timing Chain Guide, Secondary, Right Side
    MSRP $46.60 CAD
    05047791AB
    Mopar Mopar

    Timing Chain Guide, Right

    Right Side. Secondary Right. If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block.Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed.

    View Details
    8
    6509320AA - Engine: Torx Head Bolt, Mounting Left Side for Mopar Image image
    Torx Head Bolt, Mounting Left Side, Secondary
    MSRP $4.20 CAD
    06509320AA
    Mopar Mopar

    Torx Head Bolt, Mounting Left Side

    Left Bank Timing Drive Guide. M6x1.00x30.00. Primary Tensioner To Cylinder Block. Secondary Chain Tensioner To Cylinder Head. Primary Drive Guide. Right Side. Timing Chain Guide To Left Cylinder Head. Timing Chain Gude. Left Side Guide.

    View Details
    9
    5047885AB - Engine: Chain Tensioner for Mopar Image image
    Chain Tensioner, Left Side
    05047885AB
    Mopar Mopar

    Chain Tensioner, Left

    Secondary. Left Side. After 12/01/14.

    View Details
    10
    5047792AB - Engine: Tensioner Arm for Mopar Image image
    Tensioner Arm, Left Side
    MSRP $51.75 CAD
    05047792AB
    Mopar Mopar

    Tensioner Arm, Left

    Left Side. Secondary.

    View Details
    11
    5184359AB - Engine: Idler Shaft for Mopar Image image
    Idler Shaft
    05184359AB
    Mopar Mopar

    Idler Sprocket.

    View Details
    12
    5047965AB - Engine: Intermediate Gear for Mopar Image image
    Intermediate Gear
    MSRP $114.00 CAD
    05047965AB
    Mopar Mopar

    View Details
    13
    5047794AA - Engine: Timing Chain Guide for Mopar Image image
    Timing Chain Guide, Secondary, Left Side
    MSRP $76.50 CAD
    05047794AA
    Mopar Mopar

    Timing Chain Guide, Left

    If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block.Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Left Side, Secondary.

    View Details
    15
    5047907AA - Engine: Timing Primary Chain for Mopar Image image
    Timing Primary Chain
    MSRP $114.00 CAD
    05047907AA
    Mopar Mopar

    View Details
    16
    68585405AA - Engine: Crankshaft Gear for Mopar Image image
    Oil Pump Drive Gear
    MSRP $93.60 CAD
    68585405AA
    Mopar Mopar

    Crankshaft Gear

    Includes Sprocket, Oil Pump Drive Chain, Oil Pump Drive Sprocket, Crankshaft Drive.

    View Details
    18
    6508448AA - Engine: Hex Head Bolt And Coned Washer, Mounting for Mopar Image image
    Hex Head Bolt And Coned Washer, Mounting
    MSRP $9.15 CAD
    06508448AA
    Mopar Mopar

    Oil Pump. M6x1.00x25.00. Water connector assy to cyl block. Pump to Timing Belt Cover. Housing. [M6x1.0x25.0].

    View Details
    19
    5048019AC - Engine: Chain Tensioner for Mopar Image image
    Chain Tensioner
    MSRP $18.00 CAD
    05048019AC
    Mopar Mopar

    Oil Pump.

    View Details
    20
    5047966AB - Engine: Oil Pump Drive Chain for Mopar Image image
    Oil Pump Drive Chain
    05047966AB
    Mopar Mopar

    View Details
    21
    5048090AA - Engine: Oil Pump Drive Gear for Mopar Image image
    Oil Pump Drive Gear
    05048090AA
    Mopar Mopar

    View Details
    22
    6104128AA - Engine: Recessed Torx Head Bolt And Washer, Mounting for Mopar Image image
    Recessed Torx Head Bolt And Washer, Mounting
    MSRP $6.00 CAD
    06104128AA
    Mopar Mopar

    M8x1.25x16.00. Oil Pump To Drive Gear. [M8x16]. Oil Pump Sprocket. Sprinter. Intake Support Bracket To Cylinder Head.

    View Details
    23
    5047891AA - Engine: Chain Tensioner for Mopar Image image
    Chain Tensioner
    MSRP $320.00 CAD
    05047891AA
    Mopar Mopar

    Primary. After 12/01/14.

    View Details
    24
    5047886AB - Engine: Chain Tensioner for Mopar Image image
    Chain Tensioner, Right Side
    MSRP $324.00 CAD
    05047886AB
    Mopar Mopar

    Chain Tensioner, Right

    Secondary. Right Side. After 12/01/14.

    View Details
    25
    6509253AA - Engine: Torx Head Bolt, Mounting for Mopar Image image
    Torx Head Bolt, Mounting
    MSRP $8.45 CAD
    06509253AA
    Mopar Mopar

    Idler Sprocket. M8x1.25x75.00. Idler Shaft. Iderl Sprocket.

    View Details
    26
    5047790AB - Engine: Tensioner Arm for Mopar Image image
    Tensioner Arm, Right Side
    MSRP $47.85 CAD
    05047790AB
    Mopar Mopar

    Tensioner Arm, Right

    Right Side. Secondary.

    View Details
