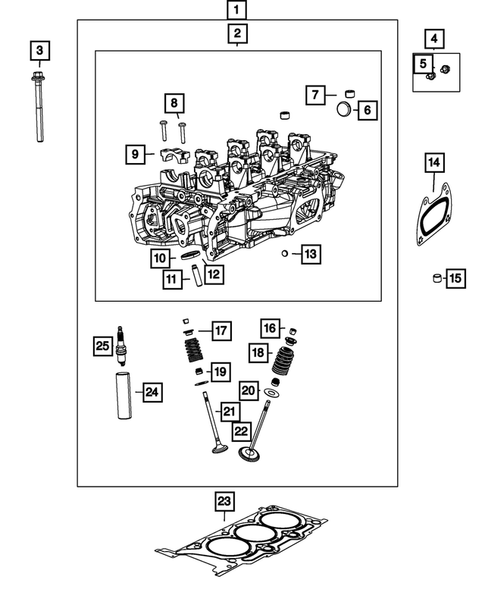

Cylinder Head for 2020 Ram ProMaster 1500
No.
Part # / Description / Price
1
Cylinder Head, Right Side 1
Mopar
MSRP $1,760.00 CAD
Mopar With Valves. WARNING: Cylinder Heads Are Shipped WITHOUT Oil Gallery Bolts/Plugs, Bolt/Plug Kit 68154699AA MUST Be Used Or Trouble Codes Will Be Set.
1
Cylinder Head, Left Side 1 Mopar
Mopar With Valves. Remanufactured Cylinder Heads Include Cylinder Head Gasket
3
Hex Washer Head Bolt, Mounting Mopar
MSRP $6.90 CAD
Mopar M12X1.50X130.00. Cylinder Head To Cylinder Block
4
Cylinder Head Bolt Kit Mopar
MSRP $30.15 CAD
Mopar Cylinder Head Oil Gallery Bolt Kit
WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
5
Hex Flange Head Bolt, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar Hex Flange Head Bolt
M8X1.25X12.00. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly
6
Core Plug, Left, Cylinder Head Mopar
MSRP $9.25 CAD
Mopar Core Plug, Right Cylinder Head
1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
7
Pipe Plug, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar .375-18X.475. Oil Gallery In In Cylinder Head Valley
8
6 Lobe Recessed Head Bolt, Mounting Right Side Mopar
MSRP $4.95 CAD
Mopar 6 Lobe Recessed Head Bolt
M6X1.00X34.00. Camshaft Bearing Cap To Cylinder Head
14
Exhaust Flange To Cylinder Head Gasket Mopar
MSRP $32.30 CAD
Mopar To Cylinder Head. Exhaust Flange to Manifold.
15
Dowel Pin, Mounting Mopar
MSRP $15.15 CAD
Mopar Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
19
Valve Guide Seal Mopar
MSRP $18.25 CAD
Mopar Black And Brown Are Interchangable. But All One Color Must Be Used On The Cylinder Head At The Same Time.. Brown
23
Cylinder Head Gasket, Right Side Mopar
MSRP $130.00 CAD
Mopar NOT Included With Long Block Engine Install Kit
23
Cylinder Head Gasket, Left Side Mopar
MSRP $17.70 CAD
Mopar NOT Included With Long Block Engine Install Kit
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

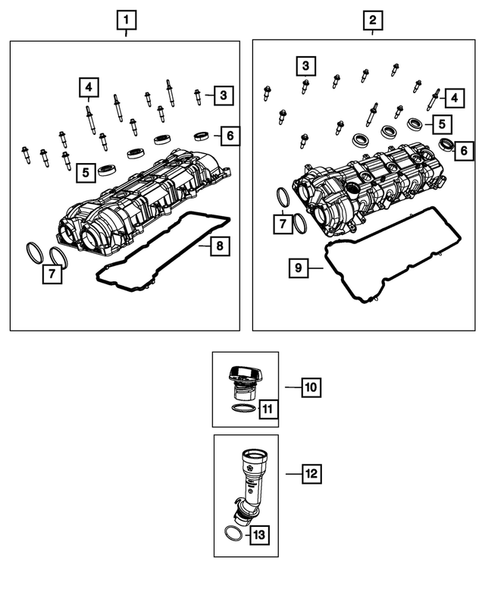

No.
Part # / Description / Price
3
Hex Flange Head Bolt, Mounting Right Side Mopar
MSRP $17.00 CAD
Mopar M6X1.00X37.00. Cylinder Head Cover To Cylinder Head
4
Double Ended Stud, Mounting Right Side Mopar
MSRP $33.75 CAD
Mopar Double Ended Stud, Mounting Left Side
M6-1.00X79.70. Cylinder Head Cover To Cylinder Head
5
Spark Plug Well Gasket, Left Side Mopar
MSRP $33.55 CAD
Mopar Spark Plug Well Gasket, Right Side
Right Side. Left Side. Cylinder Head Cover.
6
Camshaft Sensor Seal Mopar
MSRP $39.50 CAD
Mopar Camshaft Sensor Seal, Right And Left
Right Side. Left Side. Camshaft Phaser.
7
Seal, Left Side, Cylinder Head Cover Mopar
MSRP $20.05 CAD
Mopar Seal, Right & Left
NOT Included With Long Block Engine Install Kit. Camshaft Phaser
8
