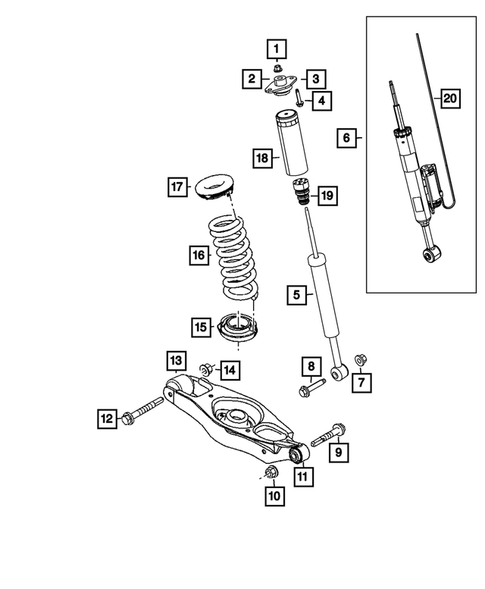

Rear Suspension and Cradle for 2020 Dodge Charger
No.
Part # / Description / Price
1
Hex Flange Lock Nut, Mounting
Mopar
MSRP $8.90 CAD
Mopar Hex Flange Lock Nut
M10x1.50. Front Differential Mount to Differential
4
Hex Head Bolt And Washer, Left Mopar
MSRP $5.65 CAD
Mopar Hex Head Bolt And Washer
M10x1.50x55.00. Rear Shock to Body
7
Hex Flange Lock Nut, Mounting Mopar
MSRP $6.00 CAD
Mopar Hex Flange Lock Nut
M12x1.75. Toe Link to Subframe
8
Hex Flange Head Bolt, Mounting Mopar
MSRP $16.35 CAD
Mopar Hex Flange Head Bolt
M12x1.75x89.50. Shock to Spring Link
9
Hex Head Bolt Mopar
MSRP $28.70 CAD
Mopar M14x2.00x120.00. If a different Bolt Length is needed, use Item #11.
12
Hex Flange Head Lock Bolt, Mounting Mopar
MSRP $14.75 CAD
Mopar Hex Flange Head Lock Bolt
M12x1.75x110.00. Torque Strut To Supension Crossmember
16
No.
Part # / Description / Price
3
Hex Head Bolt And Washer, Mounting Mopar
MSRP $15.20 CAD
Mopar Hex Head Bolt And Washer
M12X1.75X70.00. Compression Link to Subframe
4
Hex Flange Lock Nut, Mounting Mopar
MSRP $4.65 CAD
Mopar Hex Flange Lock Nut
M12x1.75. Engine Mount To Engine Mount Bracket
5
Hex Head Bolt And Washer, Mounting Mopar
MSRP $16.20 CAD
Mopar Hex Head Bolt And Washer
M12x1.75x85.00. Camber Link to Knuckle
6
Hex Nut And Washer, Mounting Mopar
MSRP $8.70 CAD
Mopar Hex Nut And Washer
M12x1.75. Camber Link to Knuckle
15
Hex Head Screw And Washer Mopar
MSRP $11.15 CAD
Mopar Hex Head Bolt And Washer
M14X1.50X113.5. Camber Screw Toe Link to Frame. Compression Link to Knuckle
18
Hex Head Bolt And Washer, Mounting Mopar
MSRP $19.15 CAD
Mopar Hex Head Bolt And Washer
M12x1.75x75.00. Toe Link to Knuckle
19
Hex Head Screw And Washer Mopar
MSRP $47.60 CAD
Mopar Hex Head Bolt And Washer
M14X1.50X113.5. Camber Screw Toe Link to Frame. Toe Link to Subframe
21
Hex Flange Lock Nut, Mounting Mopar
MSRP $6.00 CAD
Mopar Hex Flange Lock Nut
M12x1.75. Toe Link to Subframe
23
