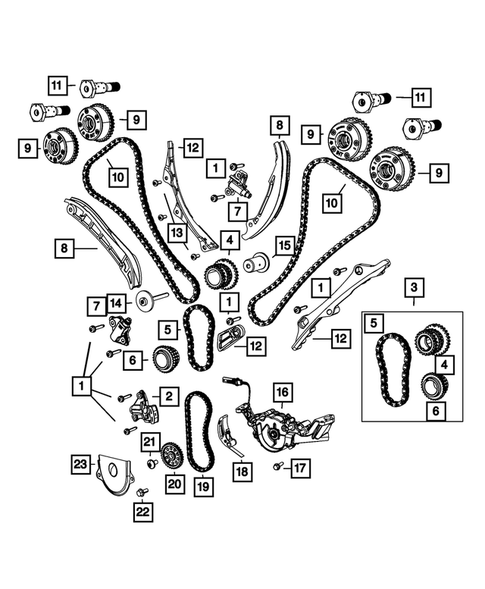

Timing Belt/Chain and Cover and Balance Shaft for 2018 Ram ProMaster 1500
No.
Part # / Description / Price
1
Torx Head Bolt, Mounting, Secondary
Mopar
MSRP $4.20 CAD
Mopar Torx Head Bolt, Mounting, Primary
M6X1.00X30.00. Left Side. Timing Chain Guide
12
Timing Chain Guide, Secondary, Right Side Mopar
MSRP $46.60 CAD
Mopar Timing Chain Guide, Secondary
If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
12
Timing Chain Guide, Secondary, Left Side Mopar
MSRP $75.50 CAD
Mopar If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
12
Timing Chain Guide, Primary Mopar
MSRP $16.35 CAD
Mopar If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
13
Torx Head Bolt, Mounting, Right Side Mopar
MSRP $3.85 CAD
Mopar Torx Head Bolt, Mounting, Secondary
M6X1.00X15.00. Secondary. Timing Chain Guide
17
Hex Head Bolt And Coned Washer, Mounting Mopar
MSRP $9.15 CAD
Mopar M6X1.00X25.00. Oil Pump To Cylinder Block
21
Recessed Torx Head Bolt And Washer, Mounting Mopar
MSRP $6.00 CAD
Mopar M8X1.25X16.00. Oil Pump Drive Gear
22
Hex Flange Head Screw Mopar
MSRP $15.65 CAD
Mopar Hex Flange Head Screw, Mounting
M5x0.8x12.0. Mounting DPF Routing Bracket and SCR Sensor. DPF Mounting Bracket
No.
Part # / Description / Price
2
Chain Case Cover Gasket Kit Mopar
MSRP $43.80 CAD
Mopar NOT Included With Long Block Engine Install Kit. Contains 3 Seals Including Round Seal
4
9
Hex Head Bolt And Coned Washer, Mounting Mopar
MSRP $9.35 CAD
Mopar M6X1.00X25.00. Coolant Crossover To Timing Case Cover
11
Hex Flange Head Bolt, Mounting Mopar
MSRP $17.70 CAD
Mopar M6X1.00X48.00. Coolant Crossover To Timing Case Cover
12
Hex Flange Head Bolt, Mounting Mopar
MSRP $10.25 CAD
Mopar M10X1.50X100.00. Engine Mount To Timing Case Cover
14
Hex Head Bolt, Mounting Mopar
MSRP $19.05 CAD
Mopar M8X1.25X45.00. Timing Case Cover To Right Side Cylinder Head
