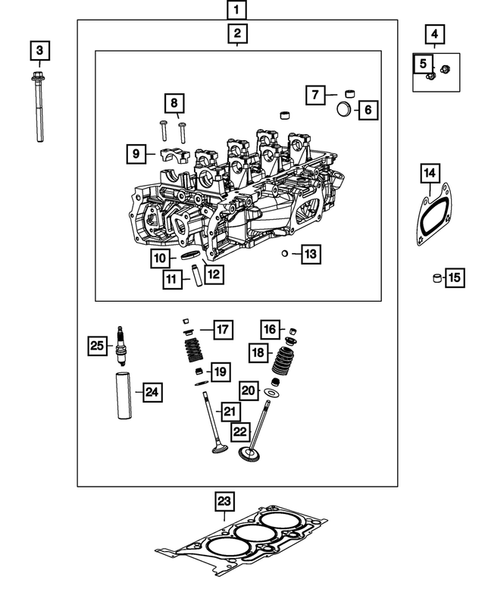

Cylinder Head for 2018 Jeep Cherokee
No.
Part # / Description / Price
3
Hex Washer Head Bolt, Mounting
Mopar
MSRP $6.90 CAD
Mopar M12X1.50X130.00. Cylinder Head To Cylinder Block
4
Cylinder Head Bolt Kit Mopar
MSRP $30.15 CAD
Mopar Cylinder Head Oil Gallery Bolt Kit, Left Side
WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
5
Hex Flange Head Bolt, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar Hex Flange Head Bolt, Left Cylinder Head
M8X1.25X12.00. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly
6
Core Plug, Left, Cylinder Head Mopar
MSRP $9.25 CAD
Mopar Core Plug, Left Cylinder Head
1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
7
Pipe Plug, Right Cylinder Head Mopar
MSRP $6.20 CAD
Mopar Pipe Plug, Left Cylinder Head
.375-18X.475. Oil Gallery In In Cylinder Head Valley
8
6 Lobe Recessed Head Bolt, Mounting Right Side Mopar
MSRP $4.95 CAD
Mopar 6 Lobe Recessed Head Bolt, Mounting Left Side
M6X1.00X34.00. Camshaft Bearing Cap To Cylinder Head
14
Exhaust Flange To Cylinder Head Gasket Mopar
MSRP $32.30 CAD
Mopar To Cylinder Head. Exhaust Flange to Manifold.
15
Dowel Pin, Mounting Mopar
MSRP $15.15 CAD
Mopar Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
19
Valve Guide Seal Mopar
MSRP $18.25 CAD
Mopar Black And Brown Are Interchangable. But All One Color Must Be Used On The Cylinder Head At The Same Time.. Brown
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

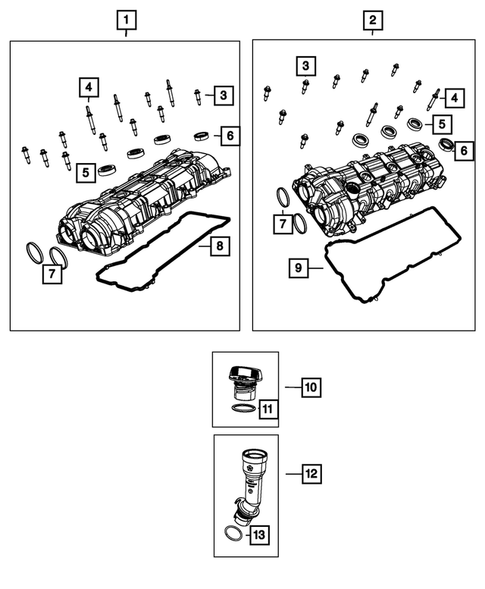

No.
Part # / Description / Price
3
Hex Flange Head Bolt, Mounting Right Side Mopar
MSRP $17.00 CAD
Mopar Hex Flange Head Bolt, Mounting Left Side
M6X1.00X37.00. Cylinder Head Cover To Cylinder Head
4
Double Ended Stud, Mounting Right Side Mopar
MSRP $33.75 CAD
Mopar Double Ended Stud, Mounting Left Side
M6-1.00X79.70. Cylinder Head Cover To Cylinder Head
5
Spark Plug Well Gasket, Left Side Mopar
MSRP $33.55 CAD
Mopar Spark Plug Well Gasket, Right Side
Right Side. Left Side. Cylinder Head Cover.
6
Camshaft Sensor Seal Mopar
MSRP $39.50 CAD
Mopar Camshaft Sensor Seal, Left Side
Right Side. Left Side. Camshaft Phaser.
7
Seal, Left Side, Cylinder Head Cover Mopar
MSRP $20.05 CAD
Mopar Seal, Right Side
NOT Included With Long Block Engine Install Kit. Camshaft Phaser
8
