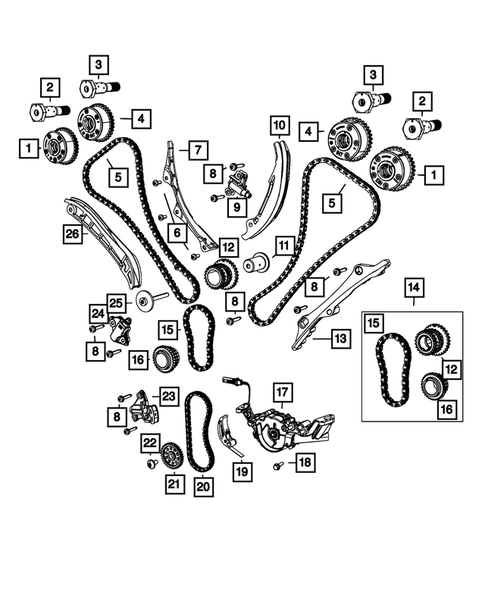

Timing Belt/Chain and Cover and Balance Shaft for 2017 Chrysler Pacifica
No.
Part # / Description / Price
6
Torx Head Bolt, Mounting, Right Side
Mopar
MSRP $3.85 CAD
Mopar Torx Head Bolt, Secondary, Right Side
M6X1.00X15.00. Secondary. Timing Chain Guide
7
Timing Chain Guide, Secondary, Right Side Mopar
MSRP $46.60 CAD
Mopar If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
8
Torx Head Bolt, Mounting, Secondary Mopar
MSRP $4.20 CAD
Mopar M6X1.00X30.00. Left Side. Timing Chain Guide
13
Timing Chain Guide, Secondary, Left Side Mopar
MSRP $75.50 CAD
Mopar If A Short Block Engine Has Been Installed,The Timing Chain Guide Pins Are NOT Installed In The New Cylinder Block. Pin Kit 68146903AB Must Be Installed Before Timing System Can Be Installed. Before Timing System Can Be Installed.
16
Oil Pump Drive Gear Kit Mopar
Mopar Crankshaft Gear
Includes Sprocket, Oil Pump Drive Chain, Oil Pump Drive Sprocket, Crankshaft Drive
18
Hex Head Bolt And Coned Washer, Mounting Mopar
MSRP $9.15 CAD
Mopar M6X1.00X25.00. Oil Pump To Cylinder Block
22
Recessed Torx Head Bolt And Washer, Mounting Mopar
MSRP $6.00 CAD
Mopar M8X1.25X16.00. Oil Pump Drive Gear
24

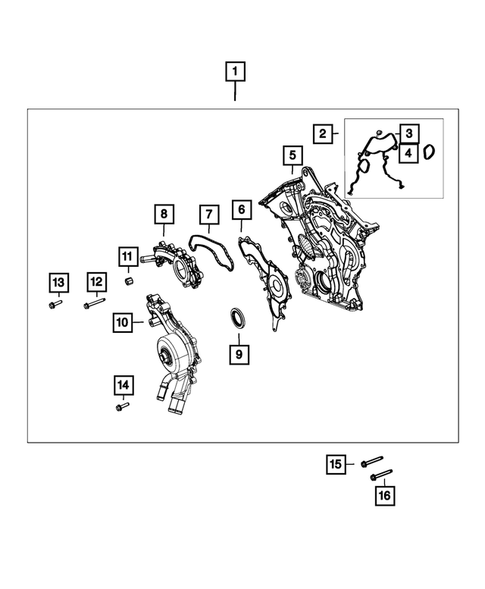

No.
Part # / Description / Price
2
Chain Case Cover Gasket Kit Mopar
MSRP $43.80 CAD
Mopar NOT Included With Long Block Engine Install Kit. Contains 3 Seals Including Round Seal
12
6 Lobe Recessed Head Bolt, Mounting Mopar
MSRP $3.75 CAD
Mopar M6X1.00X40.00. Coolant Crossover To Cylinder Head
13
6 Lobe Recessed Head Bolt, Mounting Mopar
MSRP $4.40 CAD
Mopar M6X1.00X25.42. Coolant Crossover To Timing Case Cover
15
