Home 2016 Fiat 500L Trekking 1.4L L4 - Gas Crankshaft, Piston, Drive Plate, Flywheel, and Damper

Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2016 Fiat 500L

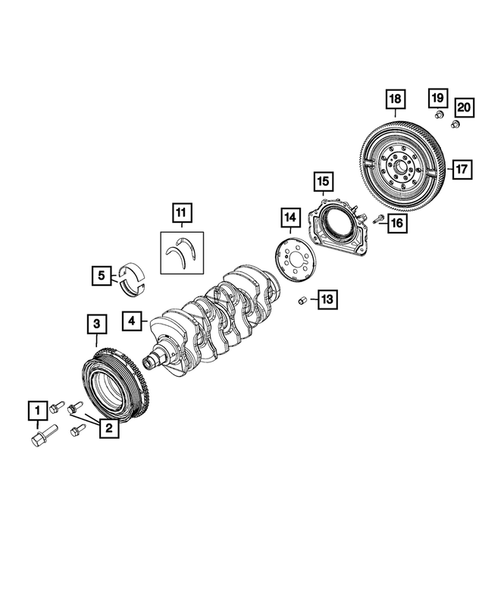

Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2016 Fiat 500L #0

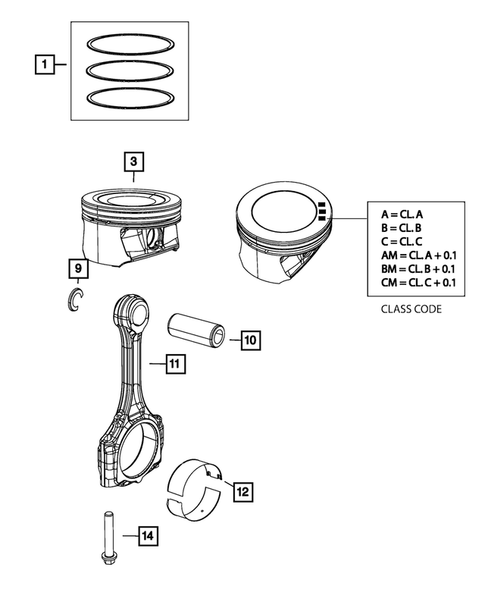

Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2016 Fiat 500L #1

Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2016 Fiat 500L #0

1

11

13

14

15

16

17

18

19

2

20

3

4

5

No.

Part # / Description / Price

N/A

68369884AA - 1.4L Turbo; Engine: Crankshaft Thrust Bearing for Mopar Image image

Crankshaft Thrust Bearing

Mopar

Mopar

[+01.27] Oversized

N/A

68119734AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

Mopar

Mopar

Crankshaft Main Bearing

Yellow. CN3 [-0.127] Undersized 1.911-1.915 Thickness

N/A

68119733AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

Mopar

Mopar

Crankshaft Main Bearing

Blue. BN2 [-0.127] Undersized 1.906-1.910 Thickness

N/A

68098345AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

Mopar

Mopar

Crankshaft Main Bearing

Blue. BN2 Standard 1.843-1.847 Thickness

N/A

68098346AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

Mopar

Mopar

Crankshaft Main Bearing

Yellow. CN3 Standard 1.848-1.852 Thickness

N/A

68095256AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

Mopar

Mopar

Crankshaft Main Bearing

Red. AN1 Standard 1.836-1.840 Thickness

1

6511175AA - 1.4L Turbo; Engine: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

MSRP $6.55 CAD

Mopar

Mopar

M12X1.00X46.00. Crankshaft Sprocket To Crankshaft

2

6106005AA - 1.4L Turbo; Engine: Hex Head Bolt And Coned Washer, Mounting for Mopar Image image

Hex Head Bolt And Coned Washer, Mounting

Mopar

Mopar

M8X1.25X25.00. Damper To Crankshaft

3

68218963AA - 1.4L Turbo; Engine: Crankshaft Damper for Mopar Image image

Crankshaft Damper

MSRP $347.00 CAD

Mopar

Mopar

CRANKSHAFT VIBRATION

4

68212067AA - 1.4L Turbo; Engine: Engine Crankshaft Kit for Mopar Image image

Engine Crankshaft Kit

Mopar

Mopar

Including Bearings

5

68098347AA - 1.4L Turbo; Engine: Crankshaft Main Bearing for Mopar Image image

Crankshaft Main Bearing, Upper Or Lower

MSRP $51.55 CAD

Mopar

Mopar

Crankshaft Main Bearing

Red. AN1 [-0.127] Undersized 1.899-1.903 Thickness

11

68119735AA - 1.4L Turbo; Engine: Crankshaft Thrust Bearing for Mopar Image image

Crankshaft Thrust Bearing

Mopar

Mopar

STD.

13

68285339AA - 1.4L Turbo; Engine: Dowel for Mopar Image image

Dowel Pin

MSRP $7.10 CAD

Mopar

Mopar

Dowel

NONE

14

4893235AB - 1.4L Turbo; Engine: Crankshaft Target Wheel for Mopar Image image

Crankshaft Reluctor Wheel

MSRP $140.00 CAD

Mopar

Mopar

Crankshaft Target Wheel

Crankshaft Sensor.

15

4893267AD - 1.4L Turbo; Engine: Crankshaft Rear Oil Retainer And Seal for Mopar Image image

Crankshaft Rear Oil Retainer And Seal

MSRP $291.00 CAD

Mopar

Mopar

CRANKSHAFT OIL SEAL RR

16

68294918AA - 1.4L Turbo; Engine: Screw, Mounting for Mopar Image image

Screw, Mounting

Mopar

Mopar

Rear Main Oil Seal Retainer to Cylinder Block

17

52108943AA - 1.4L Turbo; Engine: Flexplate for Mopar Image image

Flexplate

Mopar

Mopar

18

68210581AA - 1.4L Turbo; Engine: Flywheel for Mopar Image image

Flywheel

MSRP $2,275.00 CAD

Mopar

Mopar

18

68210593AA - 1.4L Turbo; Engine: Flywheel for Mopar Image image

Flywheel

Mopar

Mopar

19

6509983AA - 1.4L Turbo; Engine: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

MSRP $6.75 CAD

Mopar

Mopar

M9X1.25X26.00. Flywheel To Crankshaft

20

6509982AA - 1.4L Turbo; Engine: 6 Lobe External Head Bolt, Mounting for Mopar Image image

6 Lobe External Head Bolt, Mounting

Mopar

Mopar

M9x1.25x22.00

No.

Part # / Description / Price

N/A

68210589AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

Mopar

Mopar

C Grade .1mm O/S

N/A

68210587AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

Mopar

Mopar

A Grade .1mm O/S

N/A

68119545AA - 1.4L Turbo; Engine: Connecting Rod Bearing, Upper And Lower for Mopar Image image

Connecting Rod Bearing, Upper And Lower

Mopar

Mopar

.005" U/S

N/A

68210585AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

MSRP $329.00 CAD

Mopar

Mopar

B Grade

N/A

68119753AA - 1.4L Turbo; Engine: Piston Ring Kit for Mopar Image image

Piston Ring Kit

Mopar

Mopar

.1mm Over Size

N/A

68210588AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

Mopar

Mopar

B Grade .1mm O/S

N/A

68210586AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

MSRP $212.00 CAD

Mopar

Mopar

C Grade

1

68188203AA - 1.4L Turbo; Engine: Piston Ring Kit for Mopar Image image

Piston Ring Kit

MSRP $437.00 CAD

Mopar

Mopar

Standard

3

68210584AA - 1.4L Turbo; Engine: Engine Piston for Mopar Image image

Engine Piston

Mopar

Mopar

A Grade

9

68363909AA - 1.4L Turbo; Engine: Piston Pin Ring for Mopar Image image

Piston Pin Ring

Mopar

Mopar

10

4892960AB - 1.4L Turbo; Engine: Piston Pin for Mopar Image image

Piston Pin

MSRP $6.75 CAD

Mopar

Mopar

11

68119541AA - 1.4L Turbo; Engine: Connecting Rod for Mopar Image image

Connecting Rod

Mopar

Mopar

Up To 02/28/2017

12

4892950AB - 1.4L Turbo; Engine: Connecting Rod Bearing, Upper And Lower for Mopar Image image

Connecting Rod Bearing, Standard, Upper And Lower

MSRP $28.25 CAD

Mopar

Mopar

Connecting Rod Bearing, Upper And Lower

14

68341067AA - 1.4L Turbo; Engine: Hex Flange Head Bolt for Mopar Image image

Hex Flange Head Bolt

MSRP $14.20 CAD

Mopar

Mopar

M8X1.00X38.50. After 02/28/2017
