Home 2008 Chrysler PT Cruiser Limited 2.4L L4 - Gas Gear Train

Gear Train for 2008 Chrysler PT Cruiser

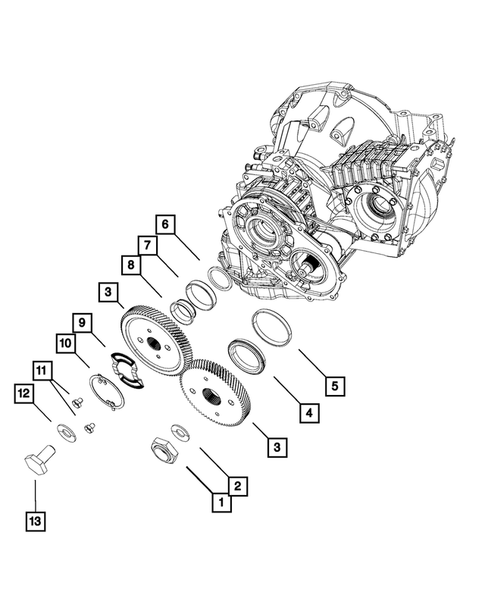

Gear Train for 2008 Chrysler PT Cruiser #0

Gear Train for 2008 Chrysler PT Cruiser #1

Gear Train for 2008 Chrysler PT Cruiser #0

1

10

11

12

13

2

3

3

4

5

6

7

8

9

No.

Part # / Description / Price

1

6507156AA - 4-Speed; Automatic VLP Transaxle: Lock Nut for Mopar Image image

Lock Nut

Mopar

Mopar

M22x1.50

2

6501833 - 4-Speed; Automatic VLP Transaxle: Coned Washer for Mopar Image image

Coned Washer

Mopar

Mopar

M22.6x45x3.42

3

4713444AD - 4-Speed; Automatic VLP Transaxle: Output And Transfer Shaft Gear Package for Mopar Image image

Output And Transfer Shaft Gear Package

Mopar

Mopar

[47T/49T] Used With a [17T/59T] Differential / Includes: Output & Tranfer Gears, Washer, Nut & Bolt

4

4446698AB - 4-Speed; Automatic VLP Transaxle: Transfer Shaft Bearing Cone for Mopar Image image

Transfer Shaft Bearing Cone

MSRP $45.45 CAD

Mopar

Mopar

5

4504041 - 4-Speed; Automatic VLP Transaxle: Transfer Gear Bearing Cup for Mopar Image image

Transfer Gear Bearing Cup

MSRP $24.70 CAD

Mopar

Mopar

6

4412816AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.86 mm]

6

4412813AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.74 mm]

6

4412823AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.14 mm]

6

4412820AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.02 mm]

6

4412821AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.06 mm]

6

4412819AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.98 mm]

6

4412829AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.38 mm]

6

4412814AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.78 mm]

6

4412824AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.18 mm]

6

4412817AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

MSRP $29.30 CAD

Mopar

Mopar

[3.90 mm]

6

4412828AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.34 mm]

6

4412811AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.66 mm]

6

4412818AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.94 mm]

6

4412809AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.58 mm]

6

4412825AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.22 mm]

6

4412808AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.54 mm]

6

4412827AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

MSRP $29.30 CAD

Mopar

Mopar

[4.30 mm]

6

4412815AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.82 mm]

6

4412822AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.10 mm]

6

4412806AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

MSRP $29.30 CAD

Mopar

Mopar

[3.46 mm]

6

4412810AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.62 mm]

6

4412812AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.70 mm]

6

4412826AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[4.26 mm]

6

4412807AB - 4-Speed; Automatic VLP Transaxle: Output/transfer Shaft Spacer for Mopar Image image

Output/transfer Shaft Spacer

Mopar

Mopar

[3.50 mm]

7

4412234 - 4-Speed; Automatic VLP Transaxle: Output Shaft Bearing Cup for Mopar Image image

Output Shaft Bearing Cup

MSRP $36.80 CAD

Mopar

Mopar

Fwd. Serviced With the Transmission Case.

8

4412235AB - 4-Speed; Automatic VLP Transaxle: Output Shaft Bearing Cone for Mopar Image image

Output Shaft Bearing Cone

Mopar

Mopar

Fwd.

9

4567263 - 4-Speed; Automatic VLP Transaxle: Retaining Nut Stirrup for Mopar Image image

Retaining Nut Stirrup

MSRP $20.40 CAD

Mopar

Mopar

Fwd.

10

4659134 - 4-Speed; Automatic VLP Transaxle: Retaining Strap for Mopar Image image

Retaining Strap

MSRP $17.60 CAD

Mopar

Mopar

Fwd.

11

6503355 - 4-Speed; Automatic VLP Transaxle: Hex Head Bolt for Mopar Image image

Hex Head Bolt

MSRP $11.10 CAD

Mopar

Mopar

M8x1.25x10.00

12

6501832 - 4-Speed; Automatic VLP Transaxle: Output Shaft Washer for Mopar Image image

Output Shaft Washer

Mopar

Mopar

Fwd.

13

6506972AA - 4-Speed; Automatic VLP Transaxle: Hex Head Bolt for Mopar Image image

Hex Head Screw

MSRP $19.25 CAD

Mopar

Mopar

Hex Head Bolt

M18X1.50X38.00

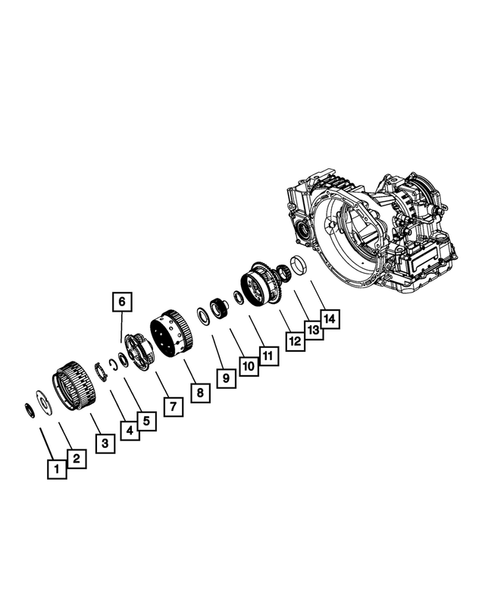

Gear Train for 2008 Chrysler PT Cruiser #1

1

10

12

13

14

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

1

4412209 - 4-Speed; Automatic VLP Transaxle: Thrust Bearing for Mopar Image image

Thrust Bearing

MSRP $25.15 CAD

Mopar

Mopar

Support to Input Clutch Hub, Needle Thrust

2

4431667AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

MSRP $39.20 CAD

Mopar

Mopar

[1.97/2.08 mm]

2

4431666AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[1.81/1.88 mm]

2

3836238AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[1.92/1.99 mm]

2

3836239AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

MSRP $39.20 CAD

Mopar

Mopar

[2.14/2.21 mm]

2

4431669AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.47/2.54 mm]

2

4431668AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.25/2.32 mm]

2

4446670AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.69/2.76 mm]

2

4431665AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[1.59/1.66 mm]

2

3836237AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[1.70/1.77 mm]

2

3836240AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.36/2.43 mm]

2

3836241AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.58/2.65 mm]

2

4446671AB - 4-Speed; Automatic VLP Transaxle: Transmission O/drive Clutch Plate for Mopar Image image

Transmission O/drive Clutch Plate

Mopar

Mopar

[2.91/2.98 mm]

3

4659618AB - 4-Speed; Automatic VLP Transaxle: Second And Fourth Clutch Hub And Gear for Mopar Image image

Second And Fourth Clutch Hub And Gear

Mopar

Mopar

Fwd.

4

4412216AC - 4-Speed; Automatic VLP Transaxle: Second And Fourth Clutch Thrust Washer for Mopar Image image

Second And Fourth Clutch Thrust Washer

MSRP $20.05 CAD

Mopar

Mopar

Use After Build Date 04/28/2008

5

6035238 - 4-Speed; Automatic VLP Transaxle: Snap Ring for Mopar Image image

Snap Ring

MSRP $11.20 CAD

Mopar

Mopar

6

4567262 - 4-Speed; Automatic VLP Transaxle: Thrust Bearing for Mopar Image image

Thrust Bearing

MSRP $27.30 CAD

Mopar

Mopar

Used with the 3 pinion carrier

7

4800673AA - 4-Speed; Automatic VLP Transaxle: Planetary Pinion Carrier for Mopar Image image

Planetary Pinion Carrier

MSRP $228.00 CAD

Mopar

Mopar

3 pinion carrier

8

4799794AB - 4-Speed; Automatic VLP Transaxle: Annulus Gear for Mopar Image image

Annulus Gear

MSRP $148.00 CAD

Mopar

Mopar

TRANS RR ANNULUS

9

4412229AB - 4-Speed; Automatic VLP Transaxle: Rear Sun Gear Thrust Bearing for Mopar Image image

Rear Sun Gear Thrust Bearing

MSRP $31.90 CAD

Mopar

Mopar

Front

10

4377080 - 4-Speed; Automatic VLP Transaxle: Sun Gear for Mopar Image image

Sun Gear

MSRP $90.90 CAD

Mopar

Mopar

Rear Sun, 38T

12

5014200AC - 4-Speed; Automatic VLP Transaxle: Planet Pinion Carrier And Bearing for Mopar Image image

Planet Pinion Carrier And Bearing

MSRP $529.00 CAD

Mopar

Mopar

Fwd.

13

4567025AB - 4-Speed; Automatic VLP Transaxle: Differential Bearing Cone for Mopar Image image

Differential Bearing Cone

MSRP $75.15 CAD

Mopar

Mopar

Fwd. Bearing. Two Wheel Drive.

14

4567022 - 4-Speed; Automatic VLP Transaxle: Differential Bearing Cup for Mopar Image image

Differential Bearing Cup

MSRP $50.10 CAD

Mopar

Mopar

Fwd. Two Wheel Drive.
