Home 2004 Chrysler Pacifica Base 3.5L V6 - Gas Windshield Wiper and Washer Systems

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #0

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #1

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #2

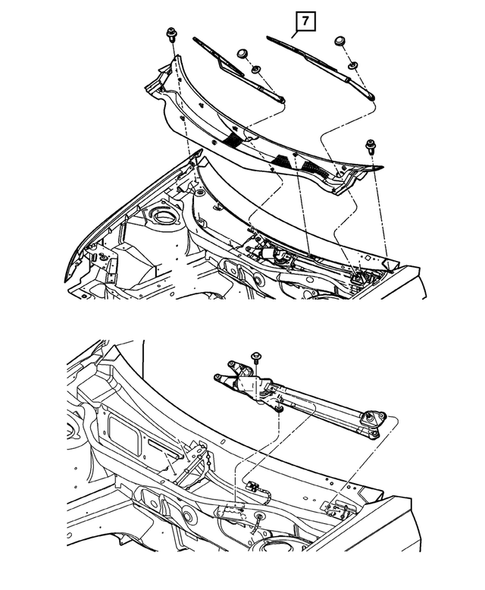

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #0

7

No.

Part # / Description / Price

N/A

4894288AD - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

Engine Compartment Area

N/A

5018127AA - Wiper/Lock Cylinder and Keys: Windshield Washer Hose for Mopar Image image

Windshield Washer Hose

Mopar

Mopar

Standard Replacement Hose (8.7 MM O.D. & 4.3 MM I.D.)

N/A

4894276AB - Wiper/Lock Cylinder and Keys: Windshield Washer Hose for Mopar Image image

Windshield Washer Hose

Mopar

Mopar

Hose to Nozzle

N/A

WBF00022AB - Wiper/Lock Cylinder and Keys: Front Wiper Blade, Right Or Left for Mopar Image image

Front Wiper Blade, Left

MSRP $31.60 CAD

Mopar

Mopar

Front Wiper Blade, Right Or Left

Mopar Beam 22 inches Confirm Application With MMOBM Catalog

N/A

5102231AB - Wiper/Lock Cylinder and Keys: Wiper Blade Refill for Mopar Image image

Wiper Blade Refill

Mopar

Mopar

1

6507045AA - Wiper/Lock Cylinder and Keys: Screw for Mopar Image image

Hex Head Bolt And Washer

Mopar

Mopar

Screw

M6x1.00x35.00. HVAC to Instrument Panel

2

5102228AA - Wiper/Lock Cylinder and Keys: Windshield Wiper Motor for Mopar Image image

Windshield Wiper Motor

Mopar

Mopar

3

5102229AB - Wiper/Lock Cylinder and Keys: Wiper Link And Bushing for Mopar Image image

Wiper Link And Bushing

Mopar

Mopar

4

4630783 - Wiper/Lock Cylinder and Keys: Wiper Arm Nut Cap for Mopar Image image

Wiper Arm Cap

MSRP $18.00 CAD

Mopar

Mopar

Wiper Arm Nut Cap

Right or Left. On Or After 10/27/2025

5

6503335 - Wiper/Lock Cylinder and Keys: Hex Nut for Mopar Image image

Hex Nut

MSRP $18.80 CAD

Mopar

Mopar

M10X1.25. Wiper Arm Attaching

6

5102236AA - Wiper/Lock Cylinder and Keys: Wiper Arm, Right for Mopar Image image

Wiper Arm, Right

Mopar

Mopar

Right.

6

5102237AA - Wiper/Lock Cylinder and Keys: Wiper Arm, Left for Mopar Image image

Wiper Arm, Left

Mopar

Mopar

Left.

7

5102230AB - Wiper/Lock Cylinder and Keys: Wiper Blade for Mopar Image image

Wiper Blade

Mopar

Mopar

10

4894160AG - Wiper/Lock Cylinder and Keys: Cowl Top Panel for Mopar Image image

Cowl Top Panel

Mopar

Mopar

COWL PANEL

11

6502573 - Wiper/Lock Cylinder and Keys: Rivet for Mopar Image image

Rivet

Mopar

Mopar

M4.9x14.5. Take Out. Riser Shield to Seat Attach

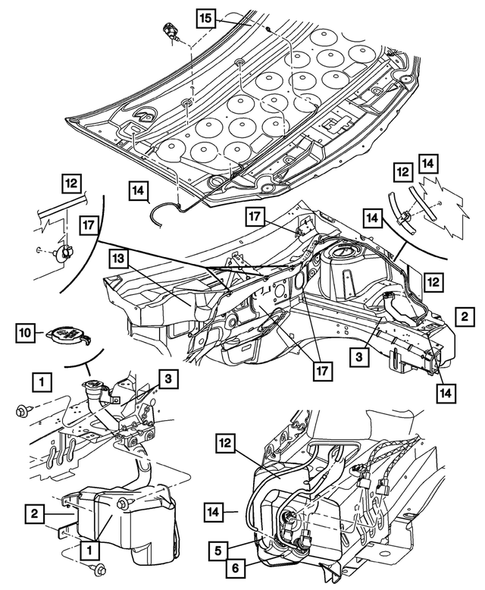

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #1

1

1

10

12

12

12

12

14

14

14

14

14

15

17

17

17

2

2

3

3

5

6

No.

Part # / Description / Price

N/A

5102256AA - Wiper/Lock Cylinder and Keys: Washer Level Sensor Grommet for Mopar Image image

Washer Level Sensor Grommet

Mopar

Mopar

[JHA+JHB]

N/A

5018127AA - Wiper/Lock Cylinder and Keys: Windshield Washer Hose for Mopar Image image

Windshield Washer Hose

Mopar

Mopar

Standard Replacement Hose (8.7 MM O.D. & 4.3 MM I.D.)

N/A

5113255AA - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

Grommet & Hose Assembly

N/A

5102254AA - Wiper/Lock Cylinder and Keys: Washer Pump Grommet for Mopar Image image

Washer Pump Grommet

MSRP $26.00 CAD

Mopar

Mopar

[JHA+JHB]

N/A

5102255AA - Wiper/Lock Cylinder and Keys: Washer Fluid Level Sensor for Mopar Image image

Washer Fluid Level Sensor

Mopar

Mopar

[JHA+JHB]

N/A

5102251AA - Wiper/Lock Cylinder and Keys: Filler Neck Grommet for Mopar Image image

Filler Neck Grommet

Mopar

Mopar

[JHA+JHB]

1

6034716 - Wiper/Lock Cylinder and Keys: Hex Flange Head Screw And Washer for Mopar Image image

Hex Flange Head Screw And Washer

Mopar

Mopar

.25-14x.875. PDC Bracket to Right Front Fender

2

5102248AA - Wiper/Lock Cylinder and Keys: Washer Reservoir for Mopar Image image

Washer Reservoir

Mopar

Mopar

3

5102249AA - Wiper/Lock Cylinder and Keys: Washer Reservoir Filler Neck for Mopar Image image

Washer Reservoir Filler Neck

Mopar

Mopar

[JHA+JHB]

5

5102252AA - Wiper/Lock Cylinder and Keys: Washer, Windshield Pump for Mopar Image image

Washer, Windshield Pump

Mopar

Mopar

6

5102253AA - Wiper/Lock Cylinder and Keys: Washer, Liftgate Pump for Mopar Image image

Washer, Liftgate Pump

Mopar

Mopar

10

4797694 - Wiper/Lock Cylinder and Keys: Washer Reservoir Cap for Mopar Image image

Washer Reservoir Cap

MSRP $37.80 CAD

Mopar

Mopar

[JHA+JHB]

12

4894288AD - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

Engine Compartment Area

12

4894288AB - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

14

4894276AB - Wiper/Lock Cylinder and Keys: Windshield Washer Hose for Mopar Image image

Windshield Washer Hose

Mopar

Mopar

Hose to Nozzle

15

4894275AD - Wiper/Lock Cylinder and Keys: Windshield Washer Nozzle for Mopar Image image

Windshield Washer Nozzle

Mopar

Mopar

17

4894492AA - Wiper/Lock Cylinder and Keys: Washer Hose Clip for Mopar Image image

Washer Hose Clip

Mopar

Mopar

Hose Mounting `D` Pillar

Windshield Wiper and Washer Systems for 2004 Chrysler Pacifica #2

1

1

1

1

1

1

2

2

2

3

3

No.

Part # / Description / Price

N/A

4894285AA - Wiper/Lock Cylinder and Keys: Liftgate Washer Nozzle for Mopar Image image

Liftgate Washer Nozzle

Mopar

Mopar

N/A

4894287AB - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

Interior Floor

1

5018127AA - Wiper/Lock Cylinder and Keys: Windshield Washer Hose for Mopar Image image

Windshield Washer Hose

Mopar

Mopar

Standard Replacement Hose (8.7 MM O.D. & 4.3 MM I.D.)

2

5113255AA - Wiper/Lock Cylinder and Keys: Liftgate Washer Hose for Mopar Image image

Liftgate Washer Hose

Mopar

Mopar

Grommet & Hose Assembly

3

4894492AA - Wiper/Lock Cylinder and Keys: Washer Hose Clip for Mopar Image image

Washer Hose Clip

Mopar

Mopar

Hose Mounting `D` Pillar
